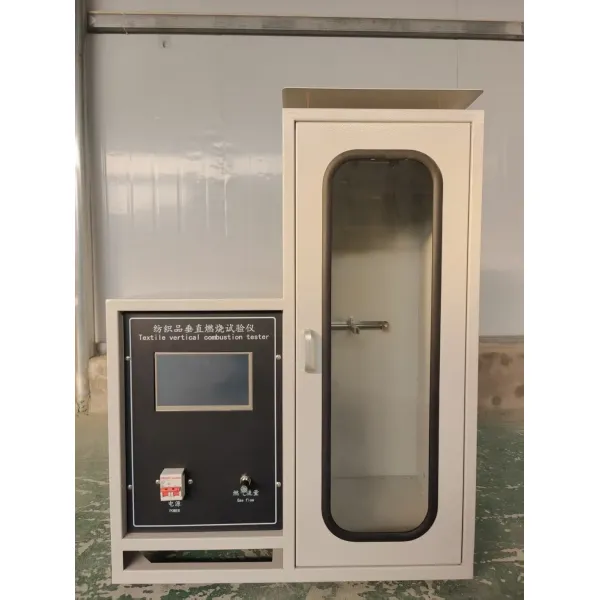

UP-5037 Textile Testing Equipment Vertical Burning Test Chamber ISO 6940 ISO 6941

  • 1
  • 2

MOQ : 1 Unit

Price : Negotiable

Place of Origin : CHINA

Brand Name : YOUBI

Certification : CE,ISO

Payment Terms : D/P,T/T,Paypal,Western Union,Money Gram

Model Number : UP-5037

Supply Ability : 20 Unit/monty

Delivery Time : 5-10 work days

Packaging Details : Professional Export Packing

Name : Textile Testing Equipment

Model NO. : UP-5037

Service Support : OEM ODM

Language : Chinese and English

Applications : Textile, Fabric and etc.

Specification : Refer to the actual size specifications

Environmental temperature : -10 ºC to 30 ºC

Contact Now

UP-5037 Textile Vertical Burning Test Chamber Compliant With ISO 6940 ISO 6941
Product Overview

This touch screen controlled textile vertical combustion instrument adopts touch screen control, with highly automated testing, suitable for various fabrics and their products such as safety nets, protective clothing, safety belts, etc., and ultimately applicable to the test method for combustion performance of vertical textile bottom edges when ignited as specified in GB5455-2014 standard.

Compliance Standards
  • Design standard: GB5455-2014 "Determination of vertical release damage length, smoldering and reigning time of textile combustion performance"
  • Applicable standards: GB6529, GB5725-2009 Safety nets
  • GB 8965.1-2009 Protective clothing - Flame retardant protection - Part 1: Flame retardant clothing
  • GB/T 6096-2009 Test Methods for Safety Belts
  • GBT13489-2008 Rubber coated fabrics - Determination of combustion performance - Vertical small flame test method
  • ISO6940/6941
Technical Specifications
Specification Details
Control Interface Touch screen display/control
Chamber Dimensions 330 × 330 × 765mm (internal combustion box)
Observation Tempered glass observation door
Ventilation 16 exhaust holes (12.5mm diameter) on top; 6 exhaust holes on each side
Ignition System Nozzle inner diameter: 11mm, 25° angle to vertical line
Gas Source Industrial grade propane, butane, or mixture; Methane (≥97% purity) for pre-treatment
Sample Size 300 × 89mm (5 pieces each in horizontal and vertical directions)
Operating Environment -10°C to 30°C
Power Supply 220V ± 10% 50HZ, less than 100W
Flame Application 0-99M99S adjustable, ±0.1s accuracy (standard: 12s)
Afterglow Time Maximum 0-99M99S
Flame Height 15mm to 175mm adjustable with flame height scale (40mm high)
Ignition Control Automatic ignition and timing with preset capability
Product Images
UP-5037 Textile Testing Equipment Vertical Burning Test Chamber ISO 6940 ISO 6941 UP-5037 Textile Testing Equipment Vertical Burning Test Chamber ISO 6940 ISO 6941 UP-5037 Textile Testing Equipment Vertical Burning Test Chamber ISO 6940 ISO 6941
Our Service Process
  • Customer Inquiry: Discuss testing requirements, suggest suitable products, and provide pricing
  • Customization: Create drawings and reference photos for customized requirements, confirm final solution
  • Production & Delivery: Manufacture according to specifications, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: On-site installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with FREE maintenance. We extend 2 additional months for sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin use. On-site installation assistance available when necessary.
