Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing

Product Categories
Dongguan Youbi Test Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing

  • 1
  • 2
  • 3

Place of Origin : CHINA

Max Diameter of Workpiece : 500 or Above

MOQ : 1

Packaging Details : Professional export wooden box packaging

Weight : 100-500Kg

Model Number : UP-6035

Load Way : Electronic Load

Loading Method : Static Load

Transport Package : Professional Export Wooden Carton Packaging

Model NO. : UP-6035

Specification : about 1CBM

Payment Terms : D/P,T/T,Western Union

Production Capacity : 100 Unit/Month

Accuracy Grade : 0.5

Mass Scope of Workpiece : <900kg

Certification : CE,ISO

Power Source : AC110-220V

Control : Computer Control

Origin : China

Brand Name : YOUBI

Supply Ability : 20 Unit/month

Type : Universal Testing Machine

Trademark : None

Maxcapacity : 20-100000kN

Price : Negotiable

Delivery Time : 5-15 work days

Delivery Terms : CIF, DDP, DDU, FedEx, DHL, Fob

Additional Service : Support Customer Customization.

Display : Digital

Oil Cylinder Position : Under

Contact Now

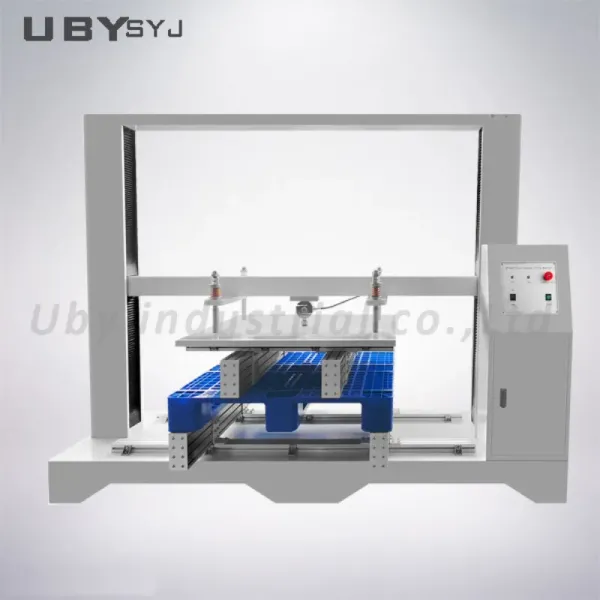

UP-6035 Plastic Pallet Strength Compression Tester for Testing Performance of Robust and Durable
Product Overview

The Plastic Pallet Strength Compression Tester is a professional testing machine designed to evaluate the compressive performance of various packaging containers including plastic pallets, cardboard boxes, and industrial containers.

Applications
  • Pressure resistance, deformation, and stacking tests for corrugated cardboard boxes and honeycomb board boxes
  • Compression testing of plastic drums (edible oil, mineral water), paper drums, paper boxes, and paper cans
  • IBC drum compression testing and plastic pallet strength evaluation
Test Standards
  • GB/T 4857.4 - Pressure test method for packing and transporting packing parts
  • GB/T 4857.3 - Test method for the static load stacking of packaging transportation packaging
  • ISO 2872 - Packaging - Complete and fully loaded transport package - Pressure test
  • ISO 2874 - Packaging - Complete and full packing package - Stacking test by pressure tester
  • QB/T 1048 - Cardboard and compressive strength tester
Technical Specifications
Parameter Specification
Accuracy ±1%
Measurement Range (50~10000)N
Measurement Size (600*800*800)mm (other dimensions can be customized)
Resolution 0.1N
Error of Deformation ±1mm
Pressure Plate Parallelism Less than 1mm
Test Speed (10±3) mm/min (stack: 5±1mm/min)
Return Speed 100mm/min
Unit Interchange N/Lbf/KGF interchange
Man-machine Interface 3.5in liquid crystal display with curve showing change process
Printer Module type thermal printer
Working Conditions Temperature (20±10°C), Humidity <85%
Appearance Size 1050*800*1280mm
Product Images
Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing Computer Control Plastic Pallet Strength Compression Tester with Digital Display and Max Capacity 20-100000kN for Packaging Testing
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. When necessary, we offer on-site installation assistance.
